- Place of Origin: china
- Brand Name: baopai

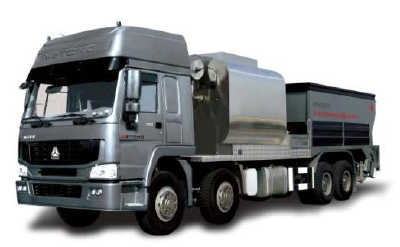

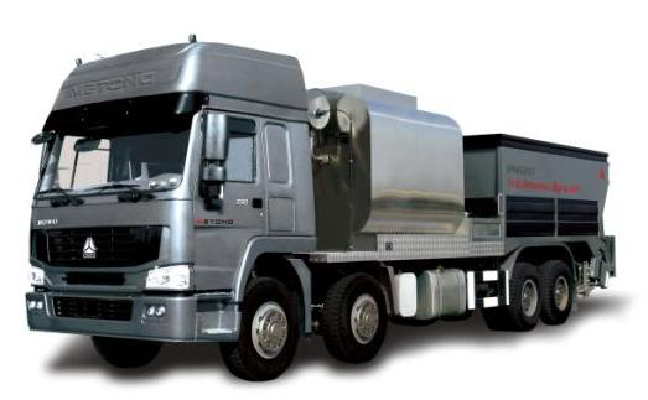

- Model Number: LMT5310TFC3
This product has the honor to get 2002 Zhejiang Excellent Hi-tech Product certificate, which uses state-of-the-art technology and is developed with the support of Zhejiang University and Zhejiang University of Technology. It is a new intelligent model of which performance reaches the most advanced level in the world.
Our production workshops are producing our products on the principle of high production process efficiency and high product quality, and use the asphalt distribution plant production line which is the first and the only one in China. Therefore, our production process detailing is more professional, and we keep improving each manufacture detail, so that the complete vehicle quality is extremely outstanding.
- Place of Origin: china
- Brand Name: baopai
- Model Number: LMT5310TFC3
型号Model | LMT5310TFC3 | |
底盘Chassis | ZZ1317M4669V | |
车辆类型Type | Flat 8×4 Rear driver | |
发动机Engine model | WD615.93 | |
功率Power（kw/r/min） | 213/2200 | |
驾驶室定员No. of the cab persons | 2 | |
外形尺寸Dimension (mm) | 12000×2490×3630 | |
额定装载质量Rated load weight（kg） | 11470 | |
最大总质量Max. mass（kg） | 31000 | |
轮距 Wheel base（mm） | 前轮Front wheel | 2022/2022 |
后轮Rear wheel | 1830 | |
轴距Wheelbase（mm） | 1800 4600 1350 | |
前悬Before suspend （mm） | 1500 | |
后悬Rear suspend （mm） | 2750 | |
最高车速Max. truck speed（km/h） | 90 | |
百公里油耗 Fuel consumption per one hundred kilometer（L） | ＜19 | |
工作速度Working speed（km/h） | 1.2~6.5 | |
沥青罐容量Asphalt tank rated capacity（L） | 6000 | |
石料仓容量Chip storehouse capacity（m3） | 12 | |
石子粒径Chip diameter（mm） | 5-20 | |
喷洒宽度Spray width（m） | ≤3.5 | |
洒布量Spray value（L/m2） | 0.25~3 | |
沥青工作介质允许粘度 Asphalt working permit viscosity（Cst） | ≤300 | |
清洗系统最大压力 Cleaning system Max. pneumatic（MPa） | 0.6 | |
液压系统最大压力 Hydraulic system Max. press（MPa） | 20 | |
